Brand Name : | DY-MED |
Model Number : | DY-70 |
Price : | $1000-$6000/pcs |
Payment Terms : | L/C, T/T |
Supply Ability : | 100pcs per month |
Delivery Time : | 3-7working days |

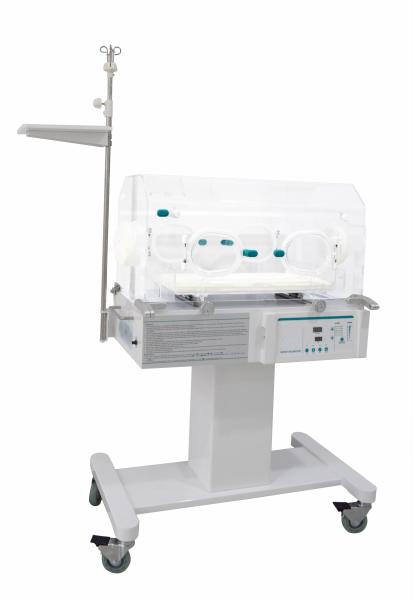

Model: DY-70
◎ Microprocessor based servo controlled temperature system
◎ Control mode: Air mode
◎ Set temperature, air temperature, heating power are displayed separately by LED
◎ Self - testing function, various failure alarms by audible and visual
◎ >37℃ temperature set function
◎ Triple protection for over temperature with separate cut off device, more safety system
◎ Humidity is adjustable continuously
◎ Low noise fan
◎ Single wall hood, 4 operating windows ,2 iris portsand 4 infusion seals
Specification
Power Supply | 220v/50~60HZ |
Power input | 650VA |
Air Temp. control range | 25.0℃~ 37.0℃;37.1℃~ 39.0℃ |
Air Temp. Display range | 20.0℃~ 42.0℃ |
Temp. Control accuracy | ≦0.5℃ |
Air mode alarm | ±3.0℃ |
Uniformity of mattress temp. | ≤0.8℃ |
Warm up time | ≤35min |
Noise level | ≤49dB(A) |
Mattress size | 370*640mm |
Through capacity | 1200ml |
Operating conditions | Environment temperature 20℃~30℃ |
Environment relative humidity 30%~75%RH | |
Atmospheric Pressure 700~1060hPa | |
Environment air velocity of flow <0.3m/s |
Optional function:
X-ray cassette holder
Up and Down phototherapy unit
Transport and Storage |
Environment Temperature:-10℃~ +55℃ |
Environment Relative Humidity: ≤95%RH |
Atmospheric Pressure: 500~1060hPa |
![]() |
